Boss Air Bullet 80 D

$15,499.29

Most items are drop shipped from the manufacturer, in some cases, parts may not be available. We will do our best to obtain all the parts needed, however, if unsuccessful, we will follow up with you and return any unshipped items.

SKU: BA-20177 Categories: ,

Description

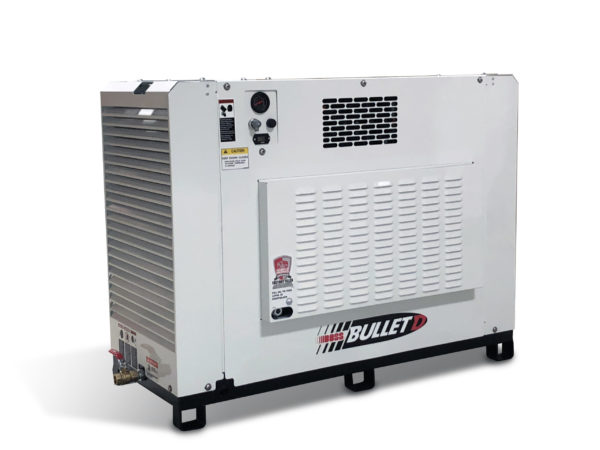

The BOSS® Bullet D 80 (p/n 20177) is a compact, strategically designed system which integrates all major components on to a single frame, enclosed in a tough, weather-resistant canopy.

Introducing the BOSS Bullet D! 80cfm @ 100psi of pure rotary screw air performance!

COMPACT DESIGN
The BOSS® Bullet D is a compact, strategically designed system which integrates all major components on to a single frame, enclosed in a tough, weather-resistant canopy. The Bullet D design provides output of up to 80cfm at 100psi. Because it measures just 20” wide x 48” long x 40” high and only weighs 700lbs, the Bullet D can be set on any class truck with minimal effect on load capacity and visibility. It is narrow enough to fit into standard industrial gates and doorways as well as service elevators for high rise or underground construction. The width of the Bullet D makes it ideal for mounting on top of a 20” wide service body compartments. On typical installations, this unit draws fuel from the vehicle source.

ROTARY SCREW DEPENDABILITY
The heart of the BOSS Bullet D compressor is the rotary screw air-end. Rotary screw compression is ideal for this application because it provides constant air flow and pressure regardless of the amount of time it takes to get the job done. This eliminates the need for an air storage tank; there is no waiting for the system to “catch-up”.

DIESEL ENGINE PERFORMANCE
Strong, dependable, efficient, all the words you want to hear when choosing the right product for the right job. When performance matters, choosing the right air compressor and paired with the right engine makes all the difference, that’s why we choose the KUBOTA Water Cooled Final Tier 4 engine.

GENERATOR OPTION
You now have the option of adding up to 7.5kW of AC power to the Bullet D. With this option, the fuel tank and battery will be removed for the generator to be installed. Typical application is to tap into the vehicel diesel fuel source and battery. Fuel lines and battery cables not provided. When ordering, please let us know if you want Single function performance with CFM and kW rating OR Multi-function performance with CFM and kW rating.

GENERATOR PERFORMANCE

Single function performance is:
80cfm @100psi / up to 6.0kW
63cfm @100psi / 7.5kW

Multi-function performance is:
35cfm @100psi / 7.5kW
40cfm @100psi / 6.0kW
60cfm @100psi / 3.5kW


Specifications

Model BOSS Bullet D + Generator
Capacity Delivery 80 CFM @ 110 PSIG
Type KUBOTA D902-E3B Final Tier 4, Vertical 4-cycle, Water Cooled Diesel Engine
Make Kubota
Model D902
Rated Power 25 HP
Weight (wet) 670lbs. (303 kg)
Actual Free Air Delivery (CFM) 80
Max Working Pressure (psig) 100
Motor HP 24.8
Dimensions (WxLxH) 48.0″ L x 20.0″ W x 40.0″ H
Approx. Weight (lbs) 670
KW 7.5

Engine

Type KUBOTA D902-E3B Final Tier 4, Vertical 4-cycle, Water Cooled Diesel Engine
Kohler Warranty 2 years
Model D902
Power @ 3600 RPM (HP) 24.8
Displacement (cu. in.) 54.8
Bore x Stroke (in) 2.83 x 2.90
Oil Capacity w/ Filter (US Gal.) .98
Battery Rating 12V
CCA @ 0°F 580
Fuel Tank Capacity (gal) 0

Compressor

Type Oil Flooded Rotary Screw
Number of Stages 1
Rated Delivery (CFM) 80
Rating Operating Pressure (PSIG) 100
Operating Pressure Range (PSIG) 80-115
Max. Operating Temp. +100° F
Oil Sump Capacity (gal) 2
Total System Volume (gal) 2.5
Air Service Connection (1) 3/4″ NPT
Type Cooling System Oil to Air
Type Air Intake System Two Stage Dry
Type of Control 0-100% Demand

Dimensions

Skid Mounted Dry Weight 670 lbs. (303 kg)
Dimensions 48.0″ L x 20.0″ W x 40.0″ H
