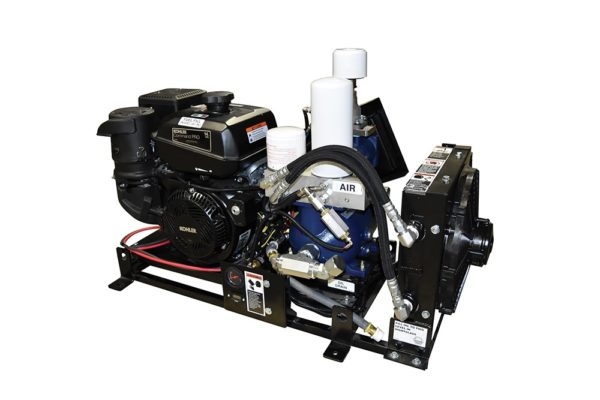

Boss Air Bullet G 30
$6,729.41
Most items are drop shipped from the manufacturer, in some cases, parts may not be available. We will do our best to obtain all the parts needed, however, if unsuccessful, we will follow up with you and return any unshipped items.
Description
Introducing the Boss Bullet G 30 or, as we like to call it, the Baby Bullet (p/n 20180)! High caliber performance from a small package. The Bullet 30G requires a 12v battery supply, (cables included), for this gas engine-driven rotary screw air compressor. It’s capable of producing 30 CFM and 100 PSI continuously.
Its unique lightweight design allows you to utilize the Bullet just about anywhere. The Boss Bullet 30 features make this engine the most fuel-efficient, quiet running, and maintenance-free in its class.
Specifications
| Model | BOSS Bullet 30G |
|---|---|
| Capacity Delivery | 30 CFM @ 100 PSIG |
| Type | Gas, Single Slant Cylinder, Air-Cooled |
| Make | Kohler |
| Model | CH 440 |
| Rated Power | 14 HP |
| Weight (wet) | 300lbs. (136kg) – Dry |
Engine
| Type | Kohler 4-Cycle, Gas, Single Slant Cylinder, Air-Cooled |
|---|---|
| Kohler Warranty | 2 years |
| Model | CH 440 |
| Power @ 3600 RPM (HP) | 14 |
| Displacement (cu. in.) | 26 (429 cc) |
| Bore x Stroke (in) | 3.5 x 2.7 |
| Oil Capacity w/ Filter (US qt) | 1.16 |
| Battery Rating | 12V (not Supplied) |
| CCA @ 0°F | 225 |
| Fuel Tank Capacity (gal) | 1.93 |
Compressor
| Type | Oil Flooded Rotary Screw |
|---|---|
| Number of Stages | 1 |
| Rated Delivery (CFM) | 30 |
| Rating Operating Pressure (PSIG) | 100 |
| Operating Pressure Range (PSIG) | 80-115 |
| Max. Operating Temp. | +100° F |
| Oil Sump Capacity (gal) | 1 |
| Total System Volume (gal) | 1.5 |
| Air Service Connection | (1) 1/2″ NPT |
| Type Cooling System | Oil to Air |
| Type Air Intake System | Single Stage Dry |
| Type of Control | 0-100% Demand |
Dimensions
| Skid Mounted Dry Weight | 300lbs. (136 kg) |
|---|---|
| Dimensions | 40 1/8″ L x 20″ W x 26 1/20″ H |
Please note, orders are placed directly with the manufacturer and usually process & ship within 2-3 weeks. We will promptly notify you if that process will take longer.
Additional information
| Weight | 286 lbs |
|---|---|
| Dimensions | 40.26 × 20 × 25.85 in |
