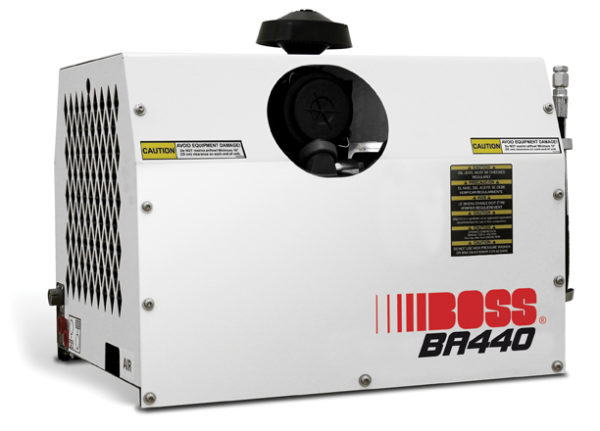

Boss Air BA440

$4,285.53

Most items are drop shipped from the manufacturer, in some cases, parts may not be available. We will do our best to obtain all the parts needed, however, if unsuccessful, we will follow up with you and return any unshipped items.

SKU: BA-20013-004 Categories: ,

Description

Weighing in at only 180lbs (dry), and with one of the smallest footprints in the market, the BOSS BA440 (p/n 20013-004) packs a punch producing up to 40cfm @ 150psi!

At the heart of the system is an aluminum, single stage, V4, pressure and splash lubricated reciprocating air compressor. Fully assembled in the U.S., the aluminum compressor assembly offers lighter weight and higher thermal efficiency than cast iron compressor assemblies. The BA440 includes an internal oil pump for increased lubrication over that of splash lubrication only compressors.

And here is what’s exciting about the BA 440!

Now, with our new design, we are as flexible as your hydraulic requirements. From 8 GPM to 12 GPM, we can offer you a variety of outputs to fit your demands!

See the chart below for all the hydraulic pressure and flow requirements.

CFM/PSI INPUT RPM GPM HYD PSI
30/100 (150 max) 1,150 8 1,850 (2,100 max)
35/100 (150 max) 1,400 10 1,850 (2,100 max)
40/100 (150 max) 1,650 12 1,850 (2,100 max)
The compressor is direct coupled to a gear-type hydraulic driven motor, no need to replace and tension belts when time is of the essence!

Routine maintenance items are accessible without the removal of the canopy.

The 180lbs dry weight of the BA440 is half that of competitive brands due to the aluminum compressor, enclosure and small footprint. The aluminum enclosure not only reduces weight, but also is rust resistant.

Also, included standard with the Boss BA440 are an integrated hydraulic system cooler, integrated solenoid and relief valve, 12 VDC fan assembly (24VDC optional), heavy-duty filtration and 18-month warranty.

Specifications
Type Single-stage, 4-cylinder piston
Delivery up to 40 cfm @ 100 psig (150 psig max) @ 1650 rpm
Duty Cycle Intermittent
Power Source Hydraulic motor
Bore 2.625″
Stroke 2.5″
Displacement 44 cfm*
Cooling Air
Fan Diameter 14.125″
Hydraulic Flow @ 1650 RPM 12 gpm
Hydraulic Pressure 2,100 psig (2400 psig max)
Ambient Air Temp. -20° to 100° F
Max. Operating Slope 20°
Hydraulic System Open center
Reservoir Requirement 12 gal. minimum (plus other hydraulic equipment manufactures requirements)
Lubrication Pressure lube
Oil Capacity 1.33 qts
Electrical 12VDC standard (24VDC optional)
Hydraulic System Cooler Included as standard (compressor hydraulic cooling only)
Dimensions 26.5″ L x 19.125″ H x 19.75″ W**
Enclosure Powder-coated aluminum
Weight 180 lbs (dry)
Warranty 18-months

Notes
* At 1650rpm
** Add 2.625″ to height for air filter cap.
*** Minimum 22 Gallon Air Reservoir Required
